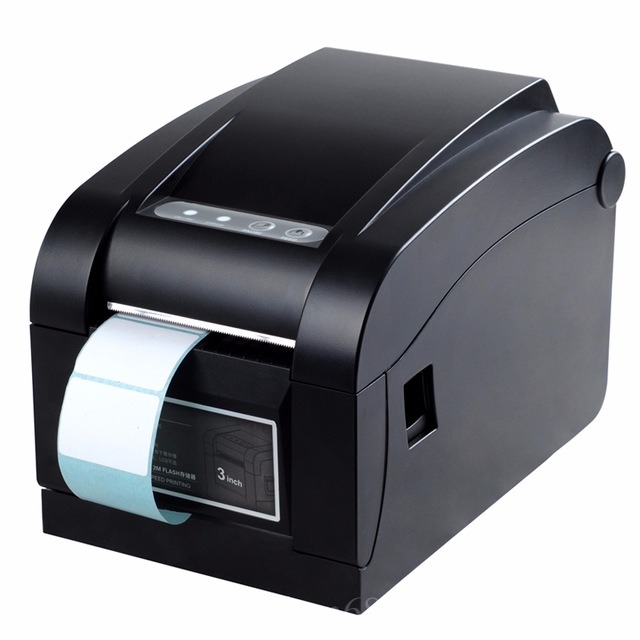

Máy in mã vạch Xprinter XP-350BM
-Phương pháp in: In nhiệt trực tiếp.
-Độ phân giải: 203 dpi.
-Chiều rộng in: 76mm.
-Chiều rộng giấy: 20-82mm.
-Chiều dài in tối đa: 1000mm.
-Tốc độ in: Min: 50.8mm/s Max: 152mm/s.
-Bộ nhớ: DRAM: 4M FLASH: 4M.
-Cổng giao tiếp: LAN+COM+USB.
-Đường kính cuộn ngoài: MAX 100mm (external).
-Đường kính ống cuộn bên trong: MIN 25mm (internal).
-Mã vạch: CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14.
-Hỗ trợ điều hành: Win 9x, Win ME, Win 2000, Win 2003, Win NT, Win XP, Win Vista, Win 7, Win 8, Win 8.1.
-Nguồn điện cung cấp: 24VDC/ 2.5A.
-Kích thước: 220 x 148 x 150mm.
-Trọng lượng: 1.44kg.
Đặc tính kỹ thuật
| Printing method | Direct thermal |
| Resolution | 203dpi (8dots/mm) |
| Printing width | 76mm |
| Paper width | 20~82mm |
| Paper roll diameter | 25mm (Min) for internal, 100mm (Max) for external |
| Printing length (Max.) | Min: 50.8mm/s Max: 152mm/s |
| Print head temperature sensor | Thermal sensitive resistance |
| Bar code | CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14 |
| Print head position sensor | Micro switch |
| Media type | Paper roll, sticker, label fold, etc. |
| QRCODE | PDF417, QR CODE, Data Matrix |
| Paper off type | Tear off & peel off |
| Internal font | FONT 0 to FONT 8; Commonly used in single-byte fonts |
| Enlargement & rotation | 1to10 times enlargement in both directions; 0°, 90°, 180°, 270°, 360° rotation |
| Interface | Serial+USB+Lan |
| Memory | DRAM: 4M; FLASH: 4M |
| Image | Monochromatic PCX, BMP image files can be load to FLASH, DRAM |
| Drivers | Win 9X/Win ME/Win 2000/Win 2003/Win NT/Win XP/Win Vista/Win 7/Win 8/Win 8.1 |
| Input | 24VDC, 2.5A |
| Paper exists detection | Photoeletric sensor |
| Dimension | 220 x 148 x 150mm |
| Weight | 1.44kg |
-Xuất xứ tại Trung Quốc.
