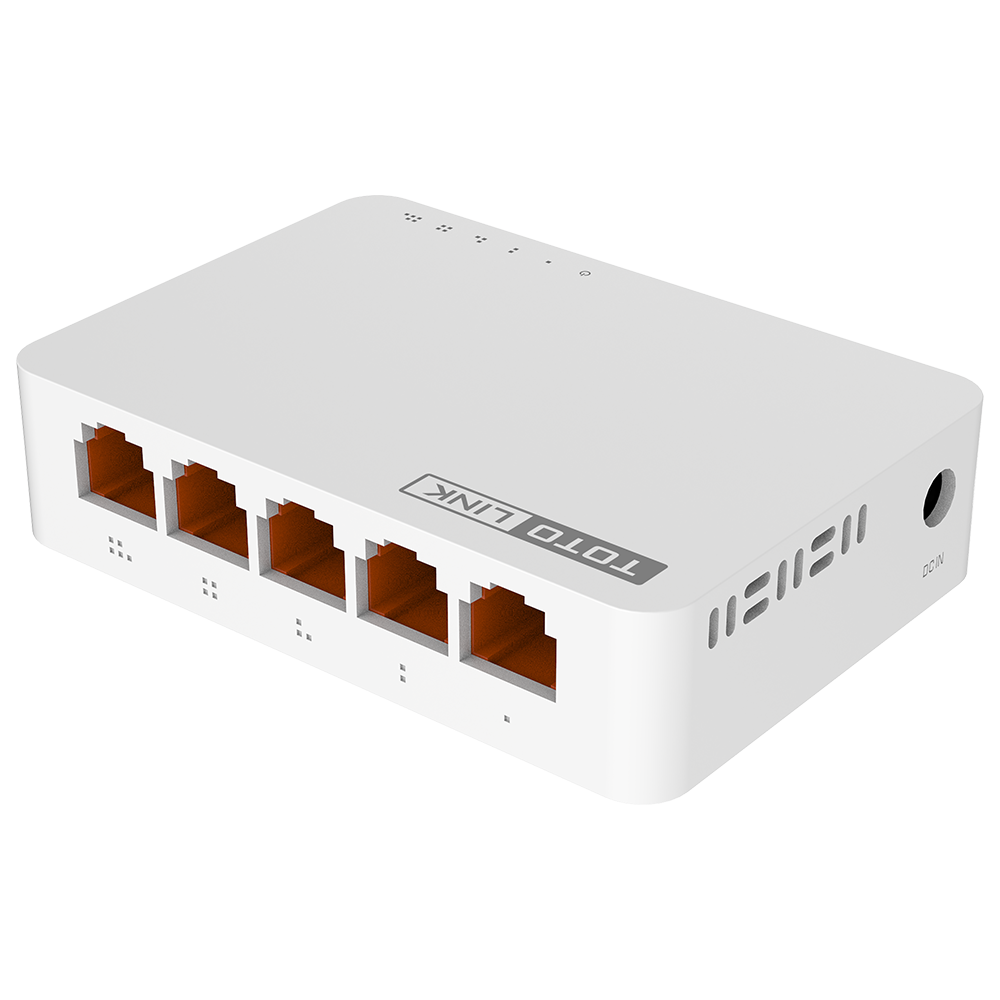

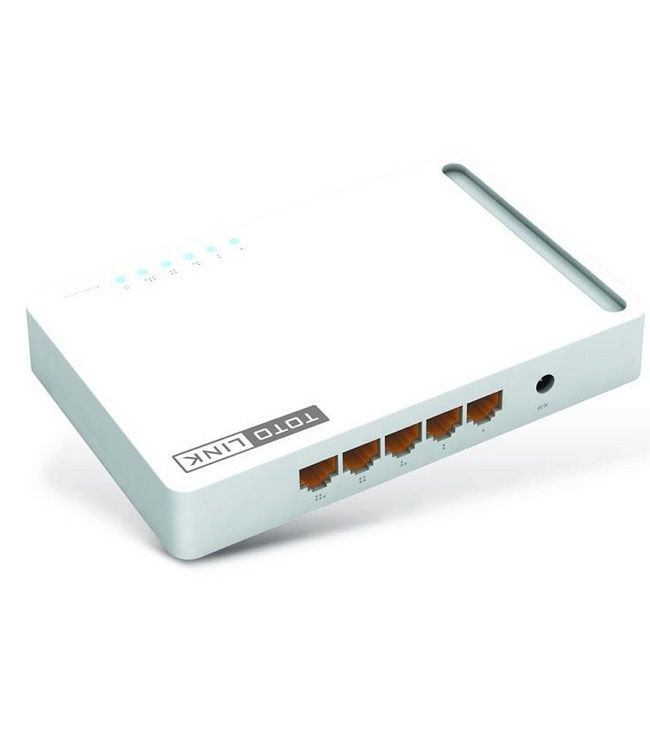

Switch TOTOLINK S505G 5 ports 10/100/1000Mbps
- 5 ports 10/100/1000Mbps, Auto negotiation (MDI/MDIX)
- Wire-speed performance, desktop size
- Support per-port bandwidth control
- Support flow control, Nway auto-negotiation for any port
- MAC address auto-leading and auto AGING
- Store and forward
- Support PHY register read/write access
| Model | S505G - Gigabit Ethernet Switch 5port |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab IEEE 802.3x |
| Interface | 5 10/100/1000M Auto-Negotiation RJ45 Ports (Auto MDI/MDIX) |
| MAC Address Learning | Automatically learning, automatically update |
| Network Media
| 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| Frame Filtering | 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps |
| LED indicators | Power, Link/Act |
| Transfer Method | Store-and-Forward |
| MAC Address | 8K |
| Backup Bandwidth | 32Gbps |
